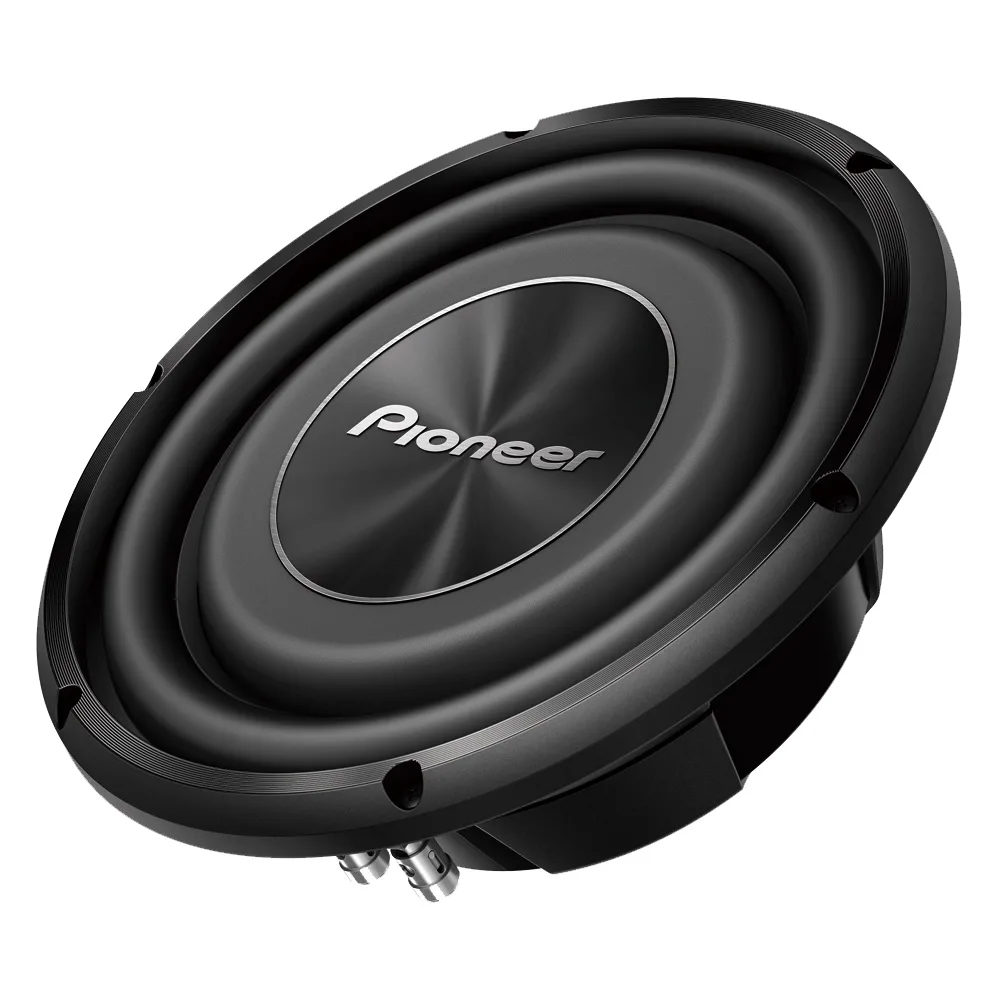

Pioneer TS-A2500LS4

Pioneer TS-A2500LS4

10″ – 1200w Max Power, Single 4 Ohms Voice Coil, Rubber Surround – Shallow-mount Subwoofer

  • 1200 Watts Max Power (300 Watts Nominal)
  • Unique Design with just 3-3/8″ Mounting Depth
  • Small Enclosure Use (0.35 ~ 0.7 cu. ft.)
  • 4 ohms Single Voice Coil
  • Glass Fiber and Mica Reinforced IMPP Cone
  • Double reinforced Spider
  • 8-AWG Push Terminals
  • Rubber Surround
SKU TS-A2500LS4 Categories , Brand:

Description

Easily Upgrade to High Performance
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

Reinforced Cone Structure
The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.

Shallow Compact Design
Our line of shallow subwoofers are designed to provide wider installation options for a broad range of vehicles. These shallow-mount subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 3-3/8″ – less than half a typical subwoofer in this class.



Build

  • ShapeRound
  • Size10″
  • Cone MaterialIMPP – Composite
  • Center Cap MaterialABS
  • Surround MaterialRubber
  • Surround TypeRolled
  • Basket MaterialStamped Metal
  • Magnet MaterialFerrite
  • Magnet Weight43.4 oz
  • Voice Coil TypeSingle Voice
  • Voice Coil BobbinKapton
  • Voice Coil wireCopper
  • DamperPoly cotton
  • GasketPP
  • Wire TerminalsPush Type
  • Unit Size (Dimensions)10-1/2″
  • Mounting Depth3-3/8″
  • Cut Out dimensions9″
  • Sub-Woofer Cutout Diameter9″ Dia.
  • Equivalent Compliance (VAS) [L]17.9
  • Free Air Resonance (Fs) [Hz]38
  • Total Speaker “Q” (Qts)0.83
  • Linear Excursion (Xmax) [mm]8.3
  • Recommended Sealed Box Volume [L]17
  • Port Box volume [L]17
  • Port Length7-1/2″
  • Port Diameter3″

Key Features

  • System TypeComponent Subwoofer
  • Sensitivity (1W/1m)85dB
  • Frequency Range20 Hz to 900 Hz
  • CTA-2031 CompliantYes
  • Warranty1 Year
  • Continuous Power handling (RMS) – Watts300 Watts
  • Maximum Peak Power Handling – Watts1200 Watts
  • Nominal Impedance – OHM4
  • Speaker GrillSold separately (UD-10GL)
